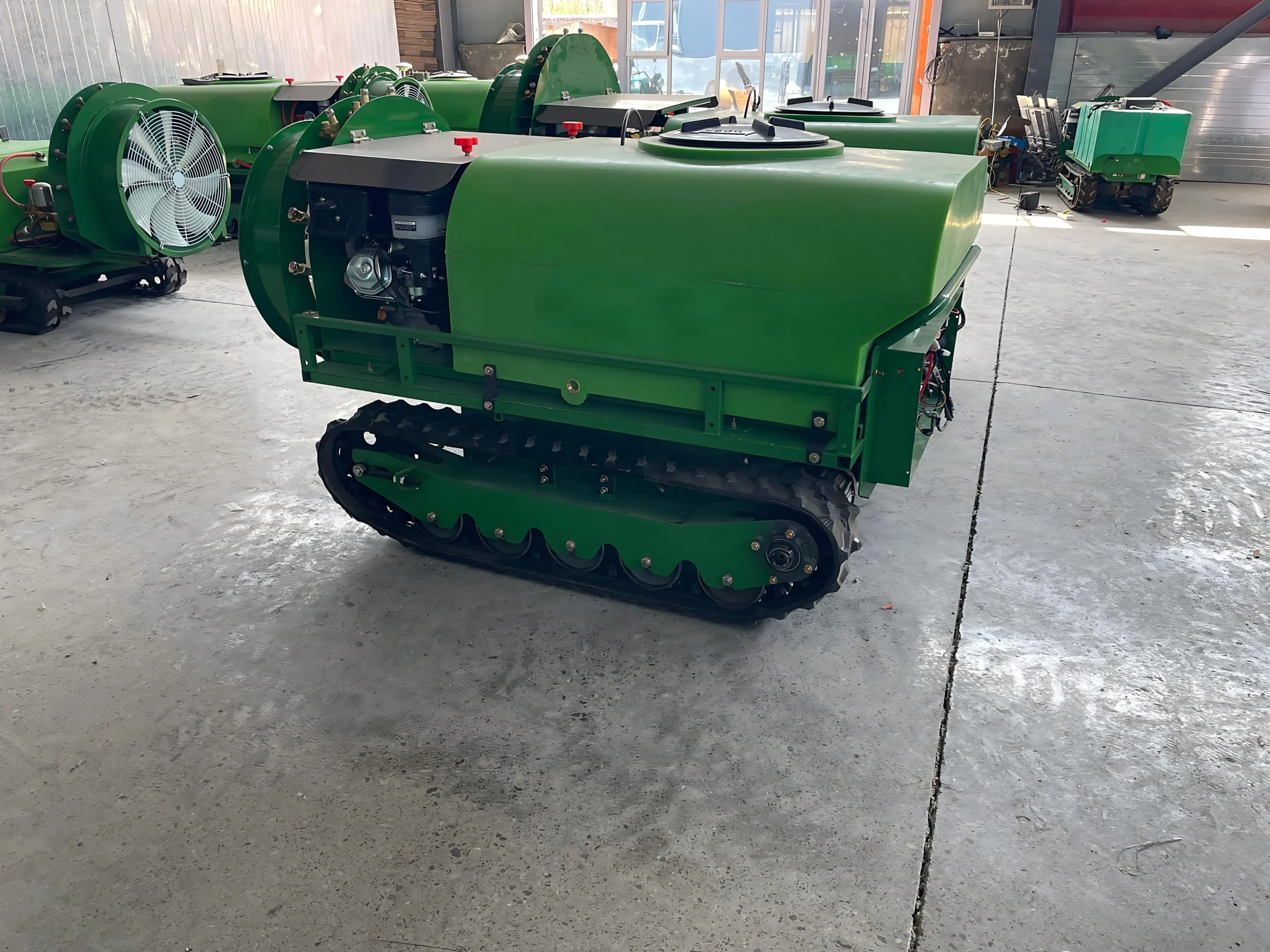

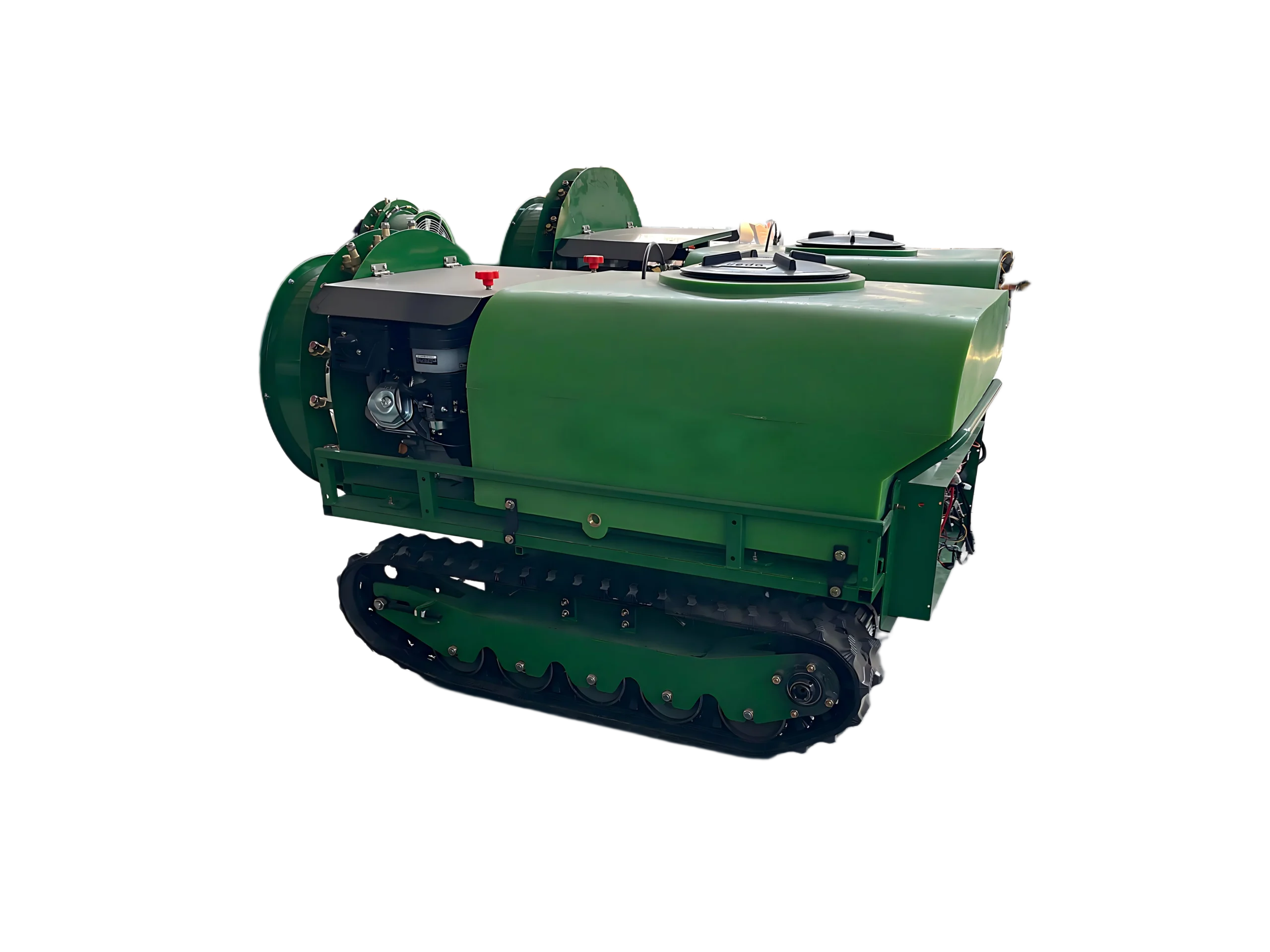

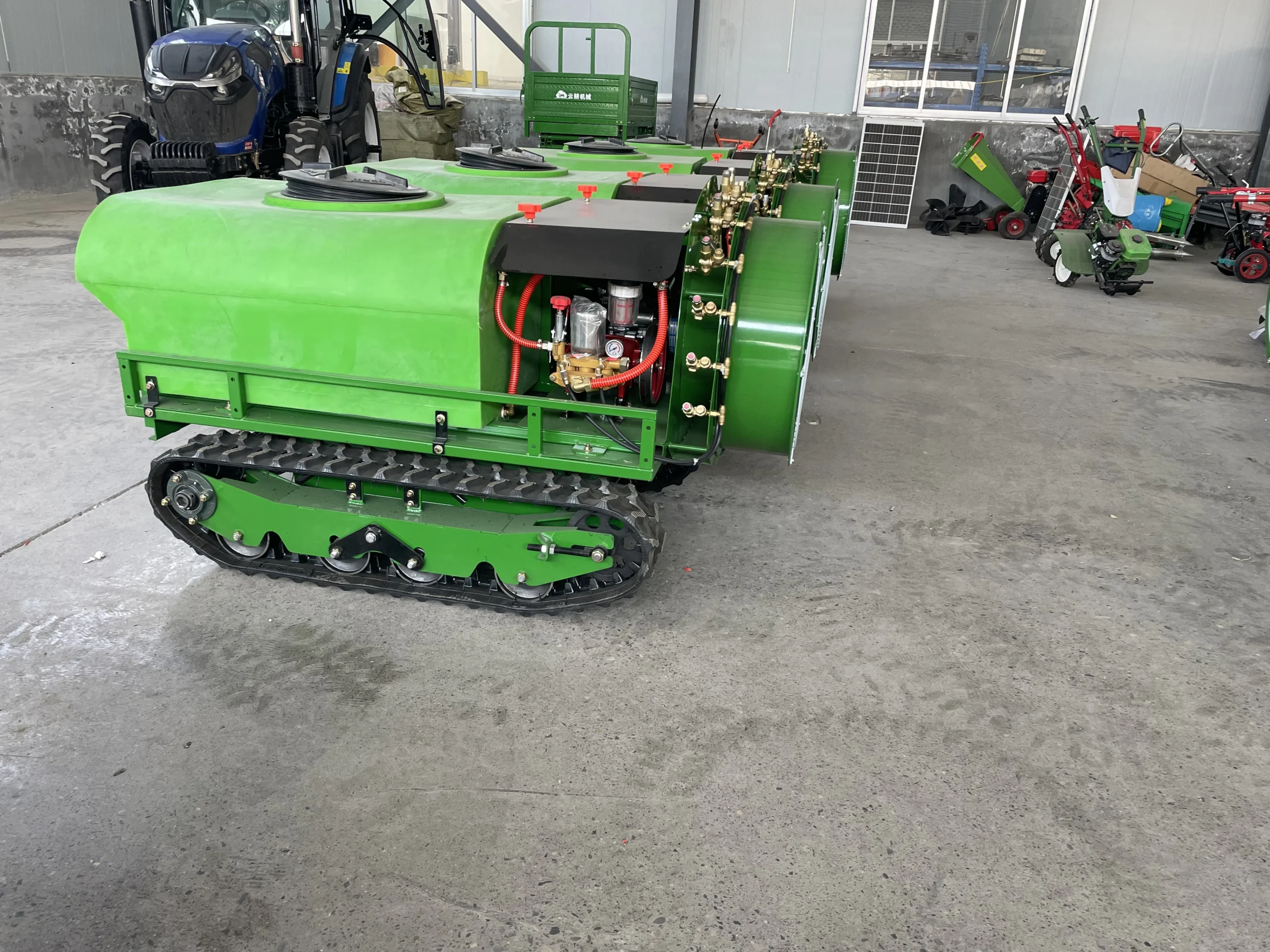

The tracked sprayer is a high-performance agricultural sprayer machine designed for large-scale plant protection, pest control, and weed control in orchards, farms, and complex terrain. It is equipped with a 500L medicine tank and delivers a powerful spray flow rate of 52–60 L/min with a wide spray range of 10–15 meters, ensuring efficient and high-coverage spraying operations.
The system features 12 independently controllable nozzles and a high-efficiency 12-blade air blower (Model 80) for strong mist penetration and uniform coverage. Powered by a 48V system with dual 1200W brushless motors, it provides strong driving power and stable performance.
With an 18cm tracked chassis and a 45° climbing ability, the machine operates reliably on slopes and rough terrain. Remote control functions include electric start, throttle control, and pesticide spraying switch, and it also supports a transport vehicle function, making it a versatile all-terrain tracked agricultural sprayer for modern farming applications.
Details parameters
| Model | GYDY-500 | Power | Gasoline 190F engine 15HP |
|---|---|---|---|
| Jet diameter | 10-15m | Start method | Electric start + manual pull |
| Medicine tank capacity | 500L | Fuel consumption | 2L/H |
| Jet flow rate | 52-60L per minute | Fuel tank capacity | 6.5L |
| Number of nozzles | 12 (can be controlled independently) | Voltage | 48V |
| Air blower | 12-blade fan model 80 | Motor power | 1200W×2(brushless) |
| Track width | 18cm | Climbing uphill | 45° |
| Remote electric start | Yes | Remote electric accelerator | Yes |
| Remote pesticide spraying switch | Yes | Transport vehicle function | Yes |
| Overall dimensions | 1900*1000*1150mm | Whole machine weight | 600KG |
| Packaging size | 1980*1080*1270mm | Packaging weight | 670KG |
