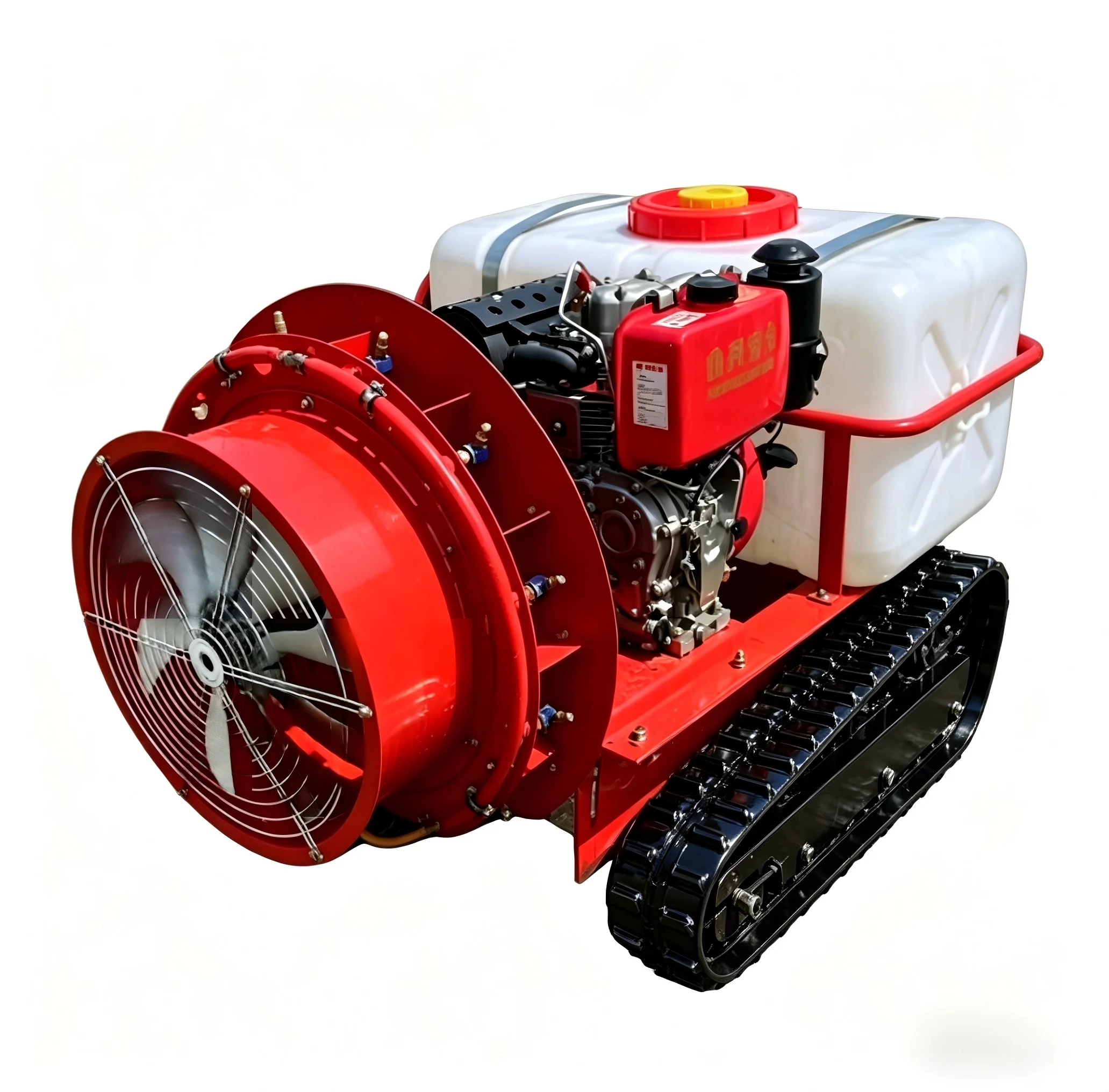

This pesticide sprayer has a capacity of 200L. The spraying flow rate is 17-26L per minute, the spraying diameter is 8-12m, there are 10 nozzles (which can be controlled independently), and the spraying pressure is 1-3.5Mpa. This machine is of extended-range operation, using a tracked movement. The wheels are cast steel integral wheels. The power source uses a 12-horsepower diesel 192F engine, equipped with a 24V 12AH battery, and the walking motor is a 600W brushless motor – 2 pieces.
Details parameters
| Model | GYDY-200 | Power | Diesel 192F engine 12HP |
|---|---|---|---|
| Jet diameter | 8-12m | Start method | Electric start + manual pull |
| Medicine tank capacity | 200L | Fuel consumption | 2L/H |
| Jet flow rate | 17-26L per minute | Fuel tank capacity | 5.5L |
| Number of nozzles | 10 (can be controlled independently) | Voltage | 24V |
| Air blower | 8-blade fan model 60 | Motor power | 600W×2(brushless) |
| Track width | 15cm | Climbing uphill | 45° |
| Remote electric start | No | Remote electric accelerator | No |
| Remote pesticide spraying switch | No | Transport vehicle function | No |
| Overall dimensions | 1360*960*980mm | Whole machine weight | 320KG |
| Packaging size | 1420*1050*1100mm | Packaging weight | 370KG |
